60ft Series Container Canopy

Panels: No Panel
Length: 40ft
Color: White
> Overview

The 60-ft Series SkyShield Shipping Container Canopy (also called a conex canopy or container shelter) delivers a robust 60-ft clear span mounted between two ISO containers. Choose from 40, 80, or 120-ft lengths to get exactly the covered area you need—ideal for industrial, construction, agriculture, and logistics sites.

Built with double-truss galvanized steel framing and 900gsm fire-retardant PVC, our shelters are engineered for rapid deployment, year-round operations, and relocatable use—without permanent foundations.

Every structure is CE certified EN 1090 and designed in line with Eurocode & IBC (International Building Code) wind and snow load guidance, giving U.S. operators confidence when projects require documented compliance.

> Key Benefits
  • Flexible footprints → 60-ft span with 40 / 80 / 120-ft lengths (2,400 / 4,800 / 7,200 ft²).
  • Double-truss strength → engineered for demanding wind and snow conditions.
  • Multi-use → shipping container canopy / conex canopy / container shelter.
  • Relocatable & modular → bolt-up system moves easily between sites.
  • Compliance-ready → CE EN 1090 fabrication; Eurocode & IBC (International Building Code) based design.

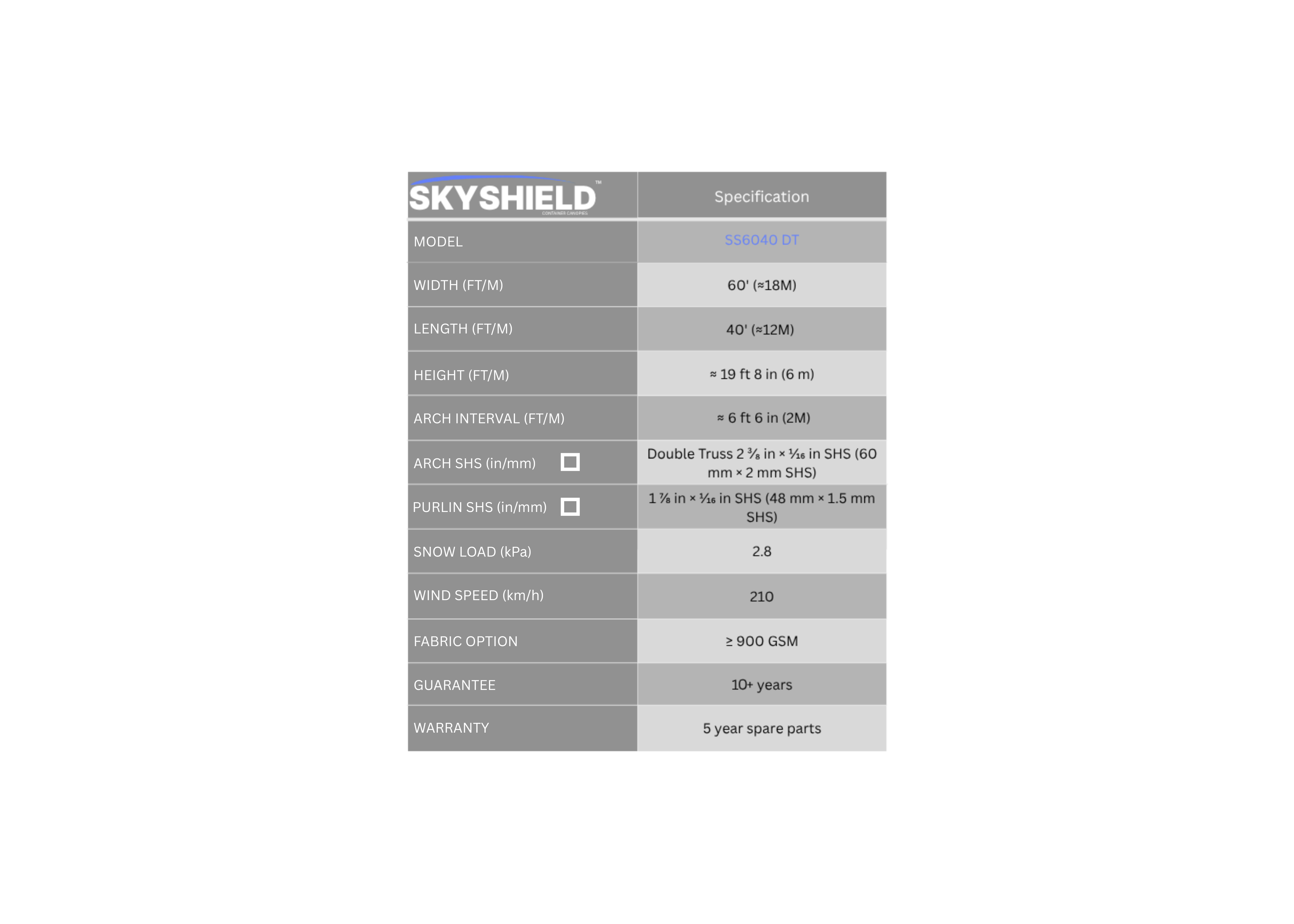

> Technical Specifications
Model Overall Dimensions (Span × Length) Covered Area
SkyShield  60×40 60 ft × 40 ft (18.3 m × 12.2 m) 2,400 ft² (223 m²)
SkyShield  60×80 60 ft × 80 ft (18.3 m × 24.4 m) 4,800 ft² (446 m²)
SkyShield  60×120 60 ft × 120 ft (18.3 m × 36.6 m) 7,200 ft² (669 m²)
Clear Span 60ft (no interior columns)
Frame Galvanized double-truss steel, CE certified EN 1090
Fabric 900gsm fire-retardant PVC (UV-stable, weldable panels)
Typical Eaves Height ≈15 ft (4.6 m) — project-specific options available
Wind Design Up to 210 km/h (site-specific engineering recommended)
Snow Load 2.8 kPa (region & exposure dependent)
Anchoring ISO container twist-lock clamps or ballast block system
Warranty 10+ years with a 5 year spare parts warranty
> Use Cases
> Construction
Protects plant, materials, and welfare areas with heavy-duty cover.
> Agriculture
Ideal for hay, feed, livestock handling, or large machinery storage.
> Logistics & Yards
Creates weather-safe space for pallet storage, vehicles, and bulk goods.
> Industrial Workshops
Use as a relocatable workshop or maintenance bay for heavy equipment.
> Installation & Delivery
  • Delivered modular for efficient shipping and fast assembly.
  • Typical build time: 3–4 days using telehandlers or cranes.
  • Anchors to ISO containers via twist-lock clamps or to ballast blocks.
> FAQs
> Is the 60-ft Series Skyshield  relocatable?
Yes. The modular bolt-up system is designed to be dismantled and reinstalled at other sites.
> Why a double-truss frame?
Double-truss geometry increases load capacity and stiffness, improving wind and snow performance over single-truss designs.
> What codes/standards does it follow?
Fabricated to CE EN 1090 with Eurocode-based wind and snow load design methodology.
> Which length should I choose?
40-ft (2,400 ft²) suits compact pads and equipment bays; 80-ft (4,800 ft²) fits most yard operations; 120-ft (7,200 ft²) maximizes throughput for logistics and industrial storage.
